Building, Deploying, and Validating the Refactored Code

After applying the code fix from the previous step, we will build the application, deploy it, trigger a new learning cycle and verify that the TODO has been resolved.

Build the Application

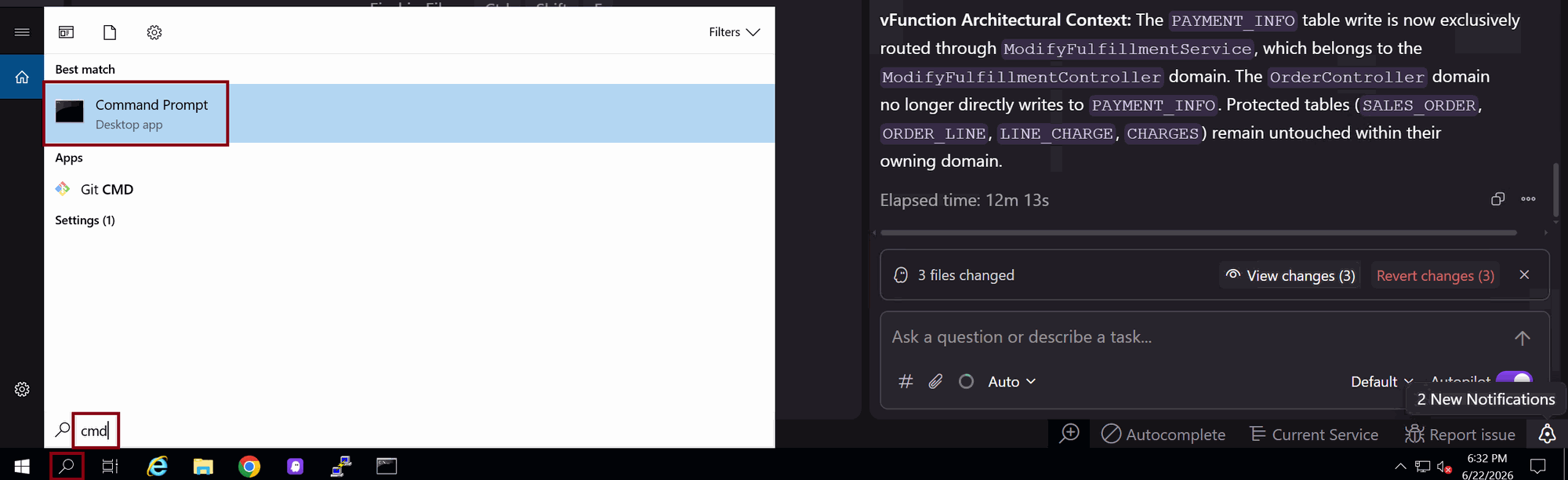

  1. Open Windows command prompt by typing cmd in the Windows search bar

    airefactor

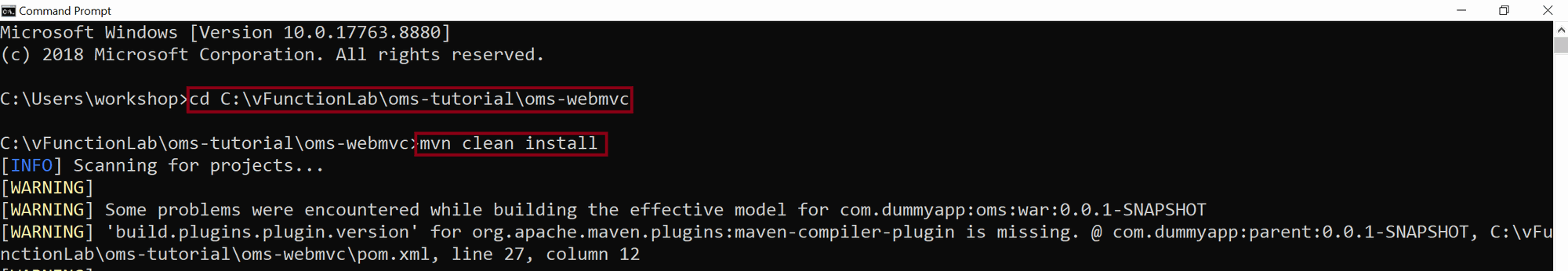

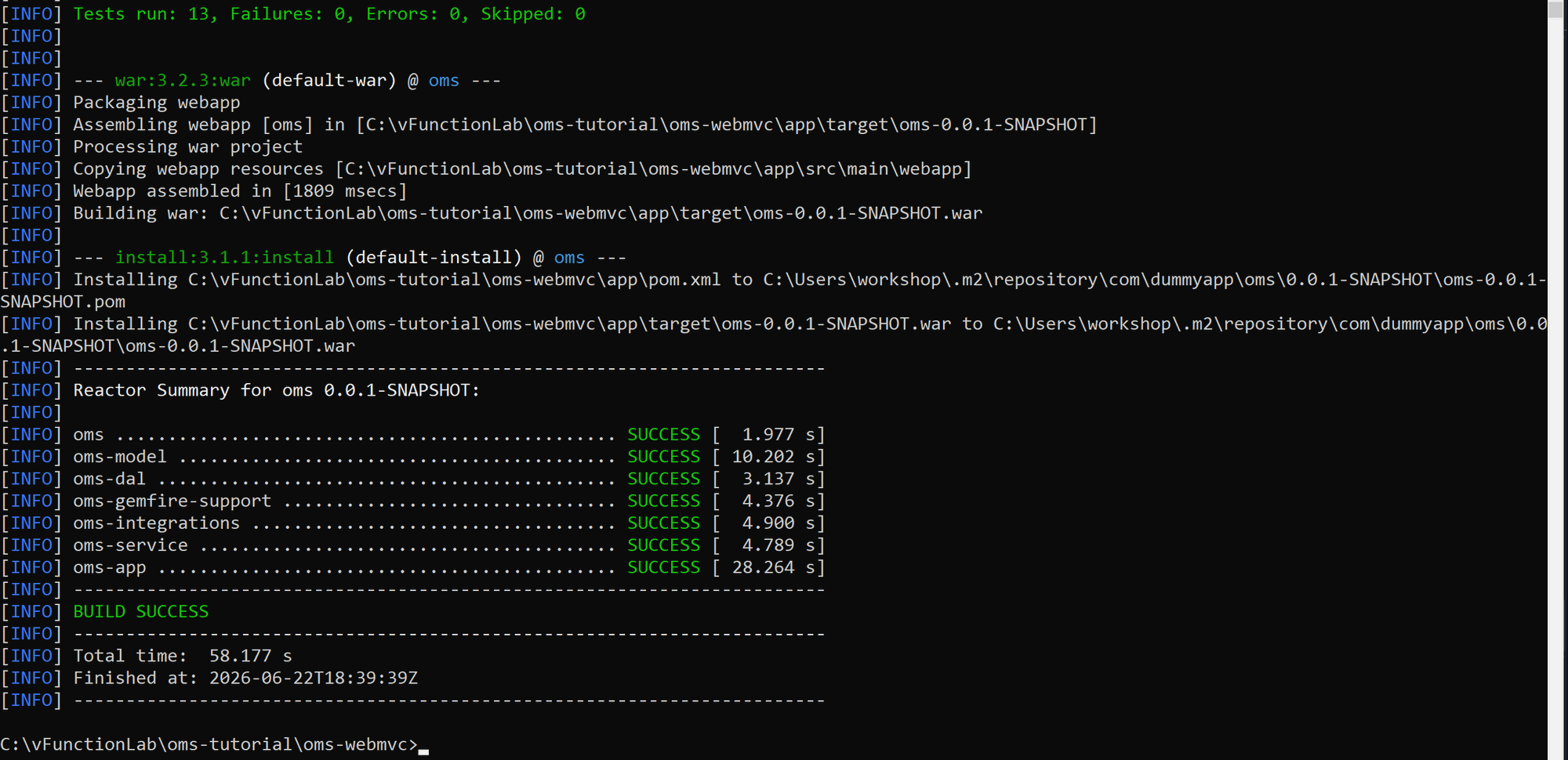

  2. Run the following to build the application

    cd C:\vFunctionLab\oms-tutorial\oms-webmvc
    mvn clean install

    airefactor airefactor

Deploy the Updated Application

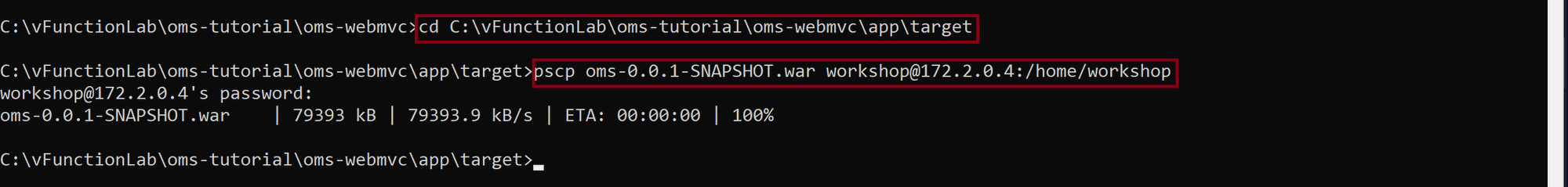

  1. Copy the compiled oms-0.0.1-snapshot.war to the Linux VM

    Enter the VM’s workshop account password when prompted

    cd C:\vFunctionLab\oms-tutorial\oms-webmvc\app\target
    pscp oms-0.0.1-SNAPSHOT.war workshop@172.2.0.4:/home/workshop

    airefactor

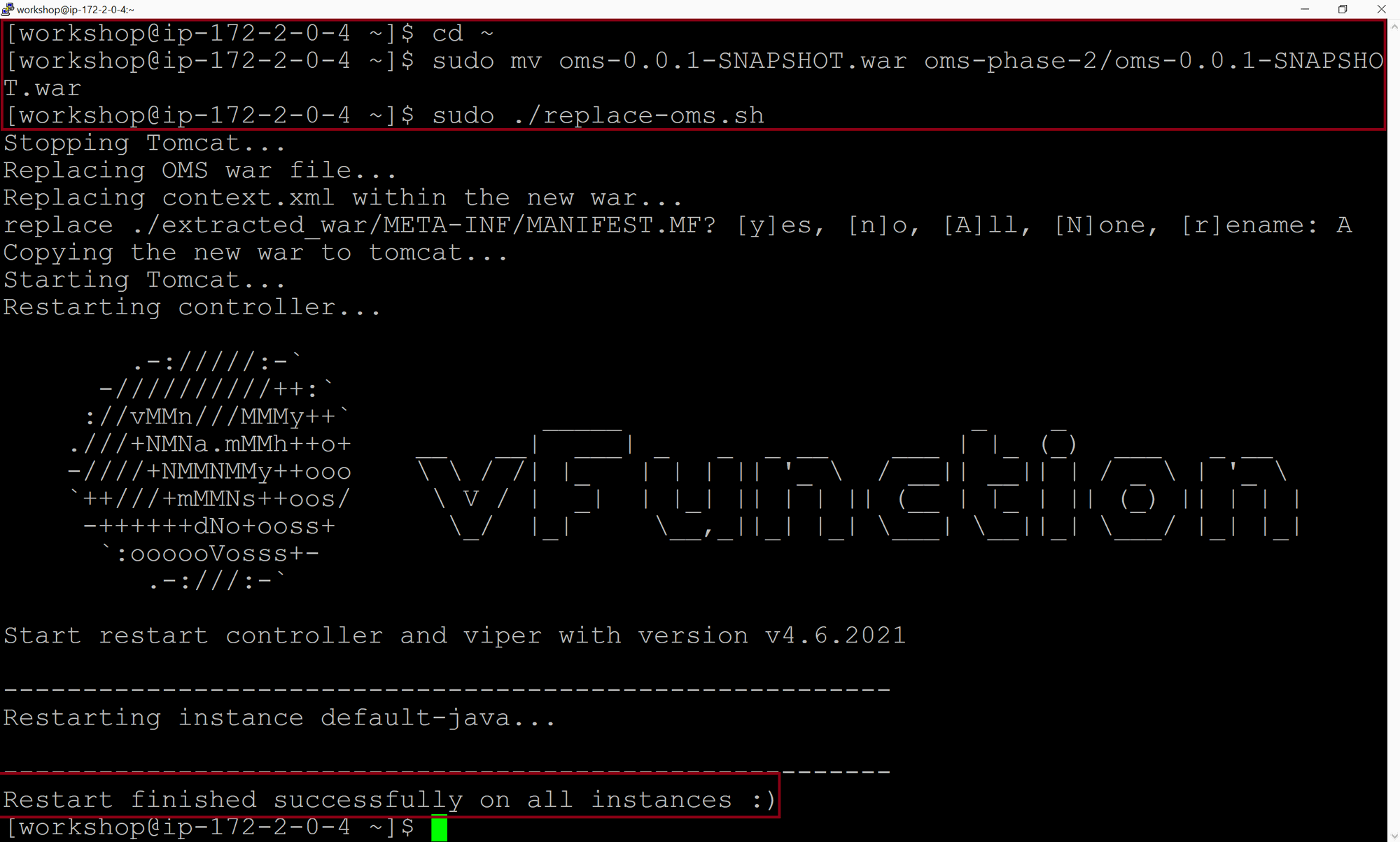

  2. Switch to the Linux terminal and deploy the new OMS version

    cd ~
    sudo mv oms-0.0.1-SNAPSHOT.war oms-phase-2/oms-0.0.1-SNAPSHOT.war
    sudo ./replace-oms.sh

    airefactor

Trigger a New Learning Cycle

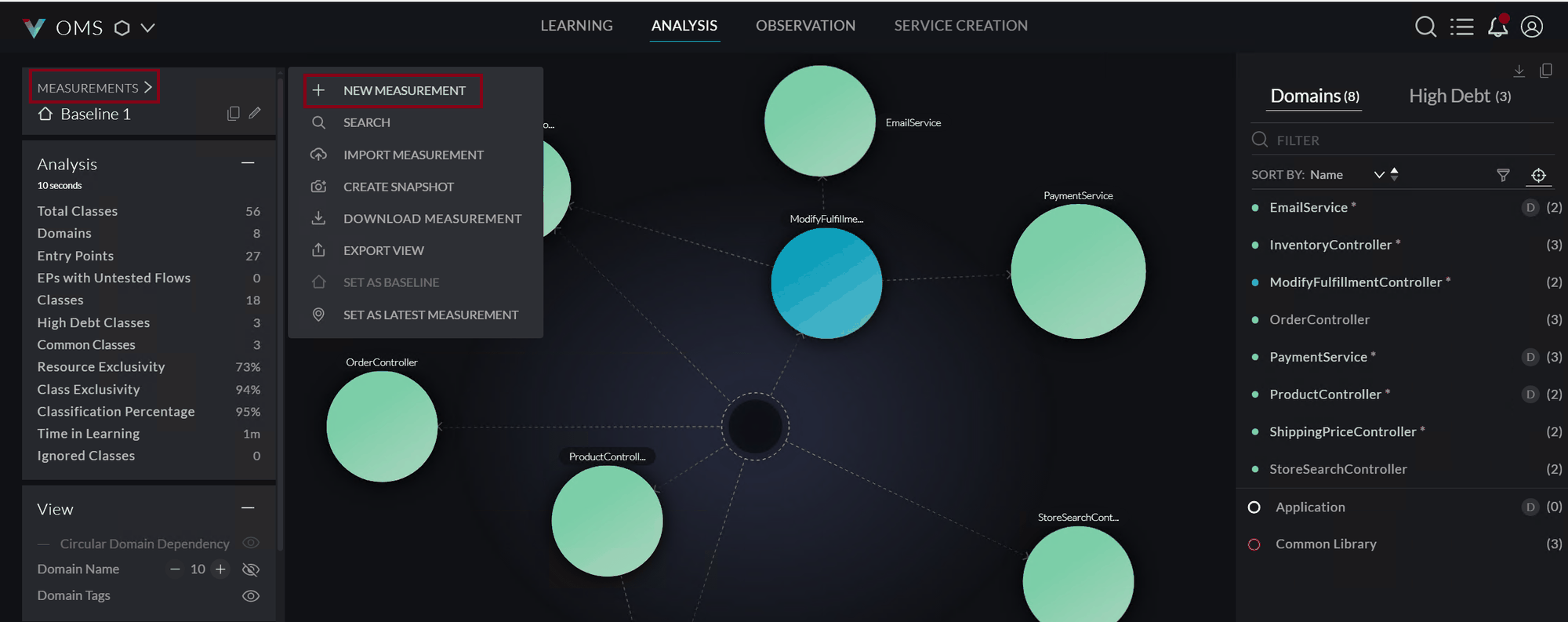

  1. In the vFunction UI, hover over MEASUREMENTS and click on NEW MEASUREMENT

    airefactor

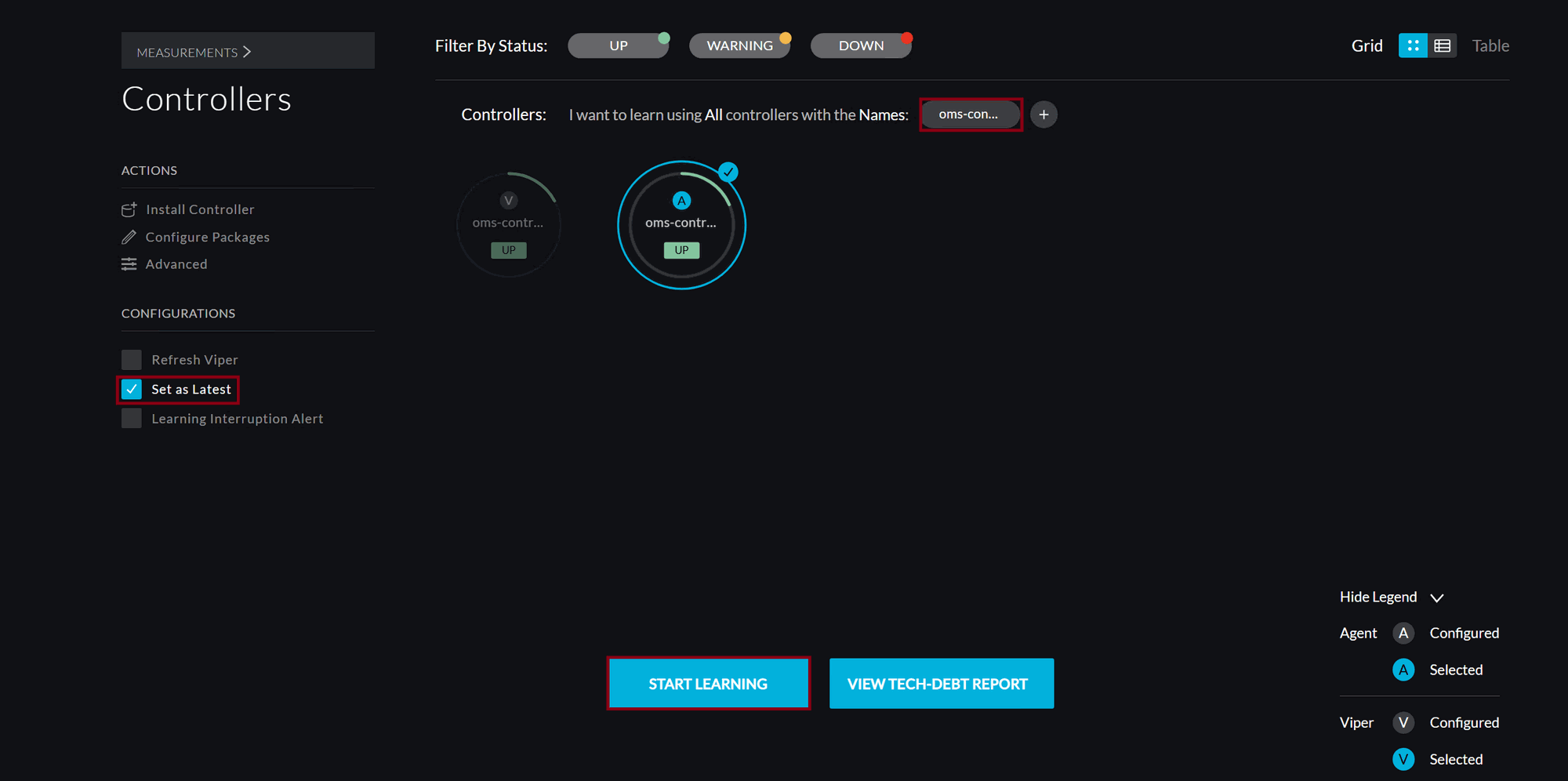

  2. Select the right agent, check Set as Latest and click START LEARNING

    After deploying the latest OMS version, wait for 5 minutes for both the agent and viper to be up and available

    airefactor

  3. In the Linux terminal, run the OMS test script to exercise application functionality:

    cd ~/oms-test-script/
    for i in `seq 1000`; do ./use-apis.sh ; sleep 0.5; done
    • let the script complete

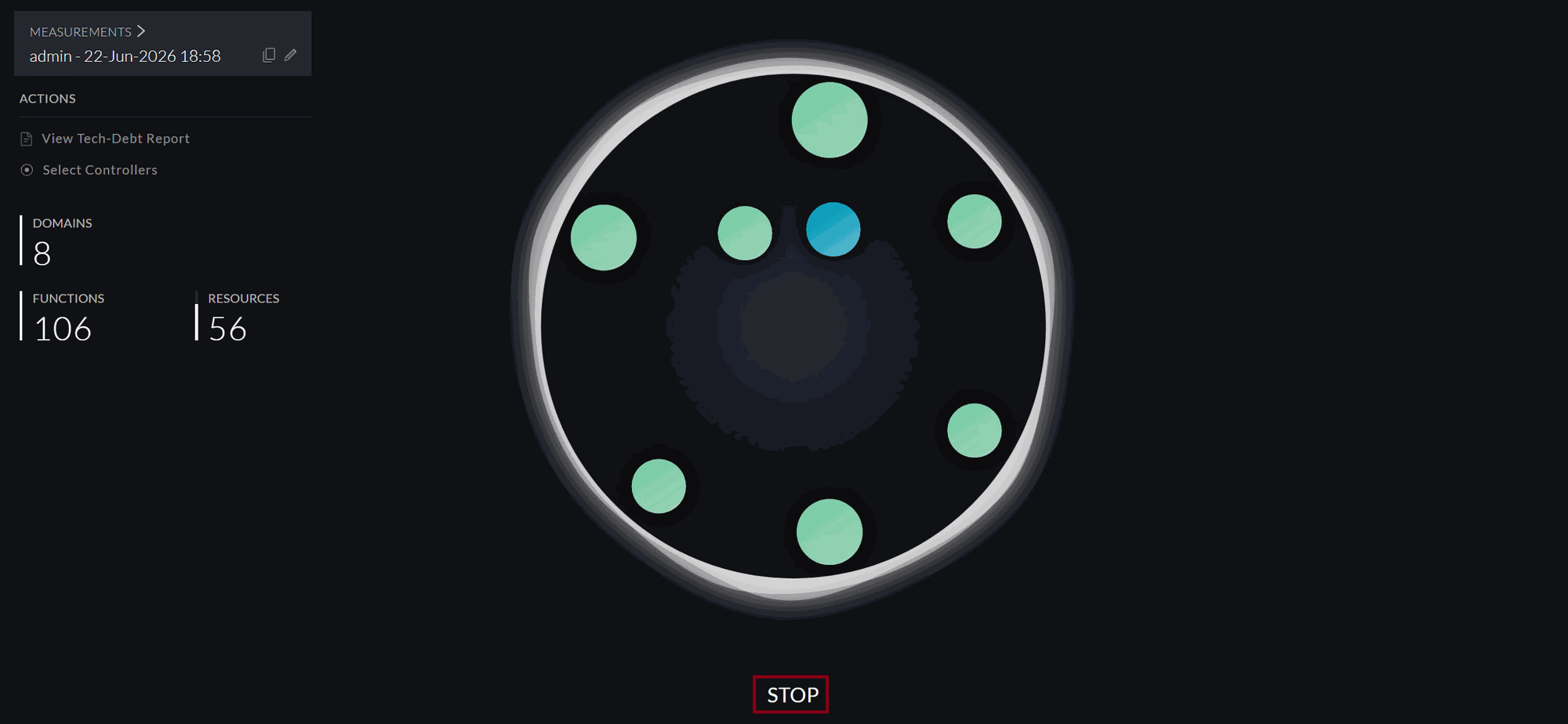

  4. Once the test script completes, stop the learning session by clicking on STOP

    airefactor

Verify TODO Resolution in the vFunction UI

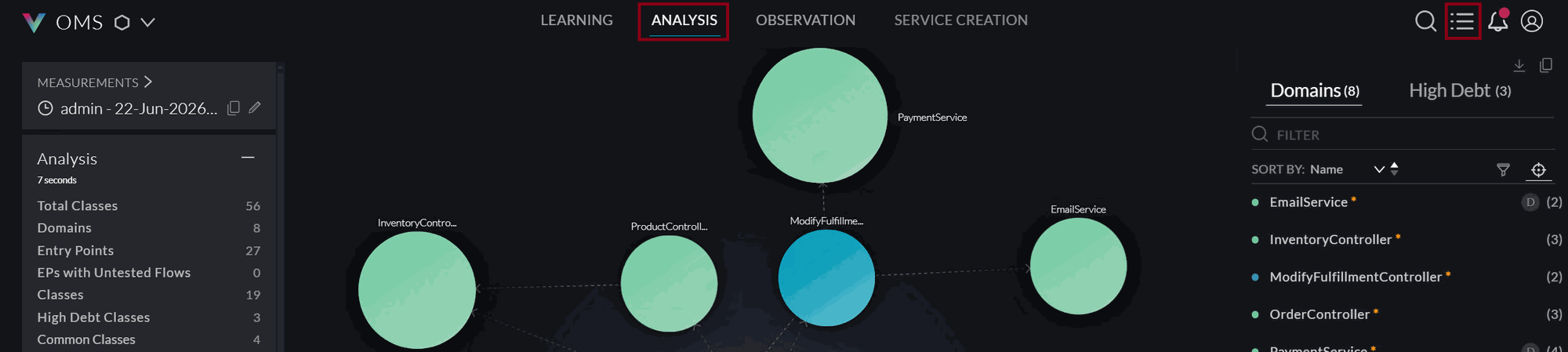

  1. On the ANALYSIS tab, click the bulleted list icon to open the TODO list.

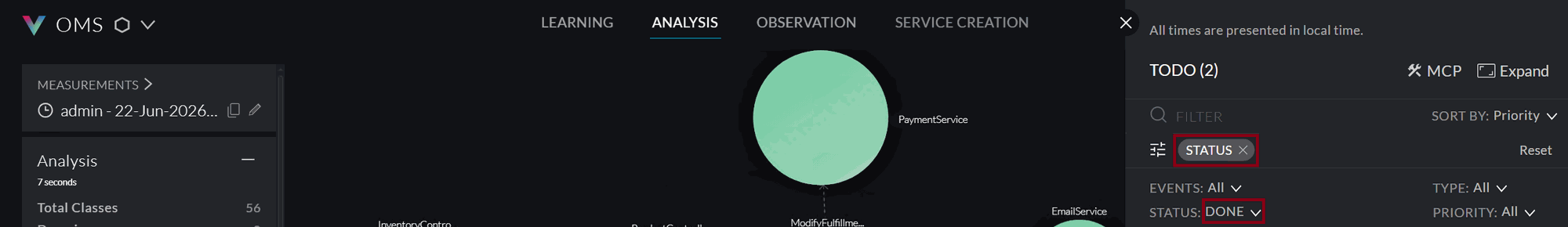

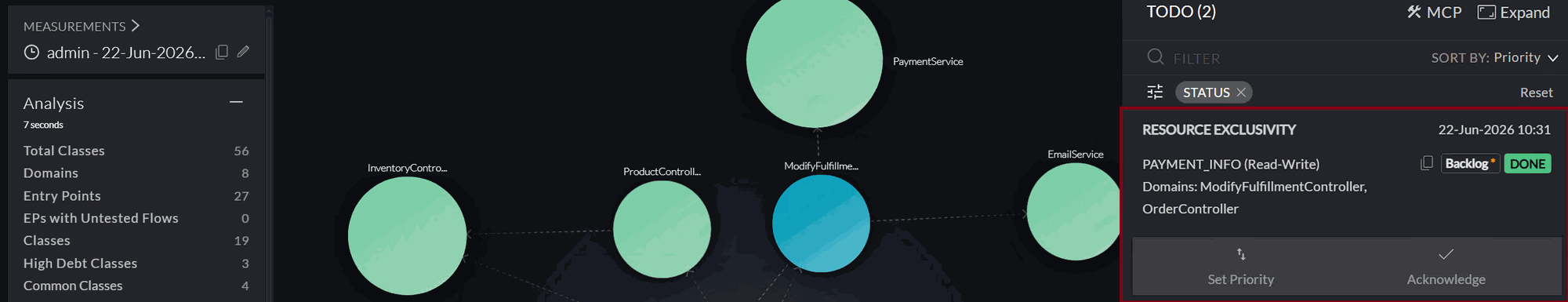

  2. Filter the TODOs by status done. You should see that the RESOURCE EXCLUSIVITY TODO on PAYMENT_INFO should be marked as DONE

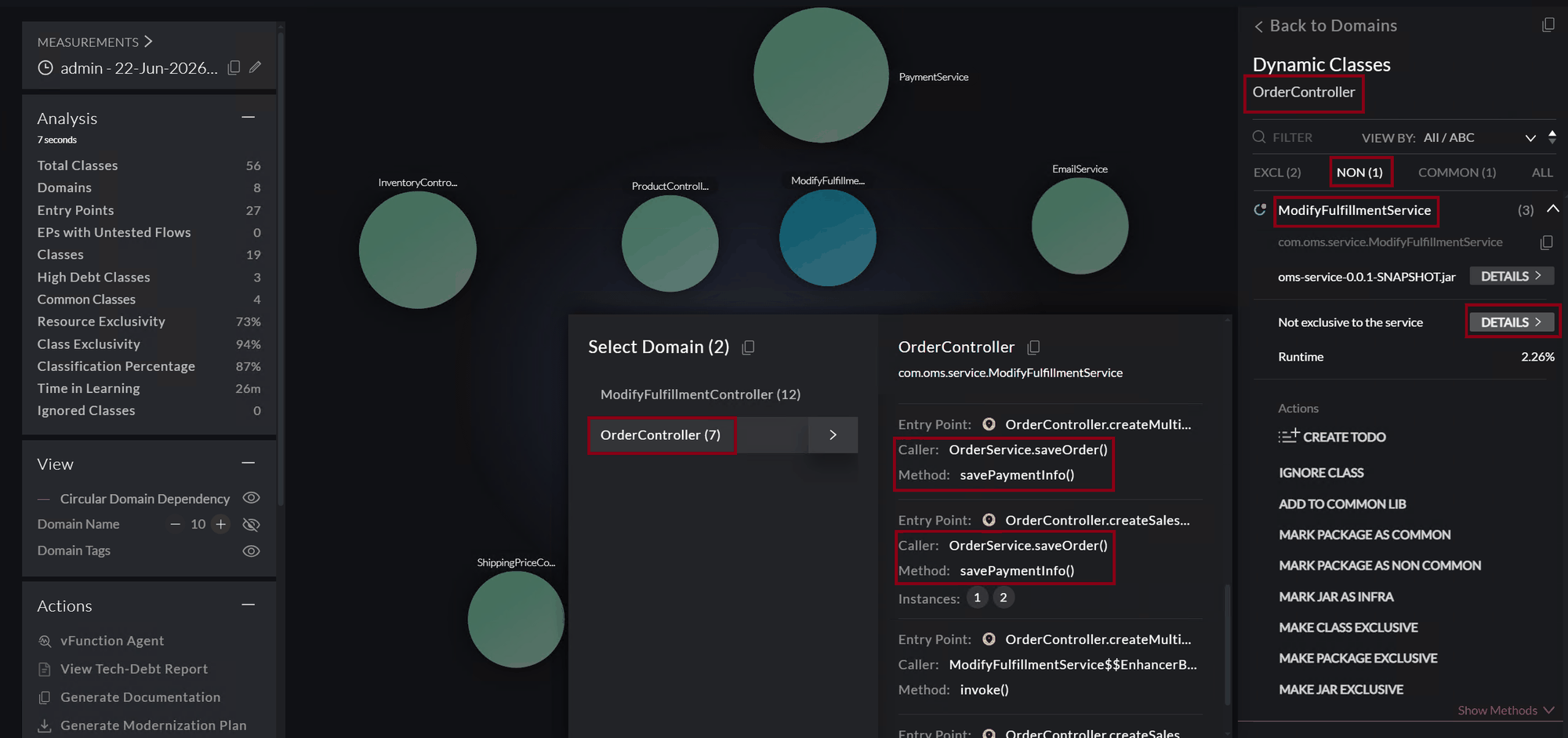

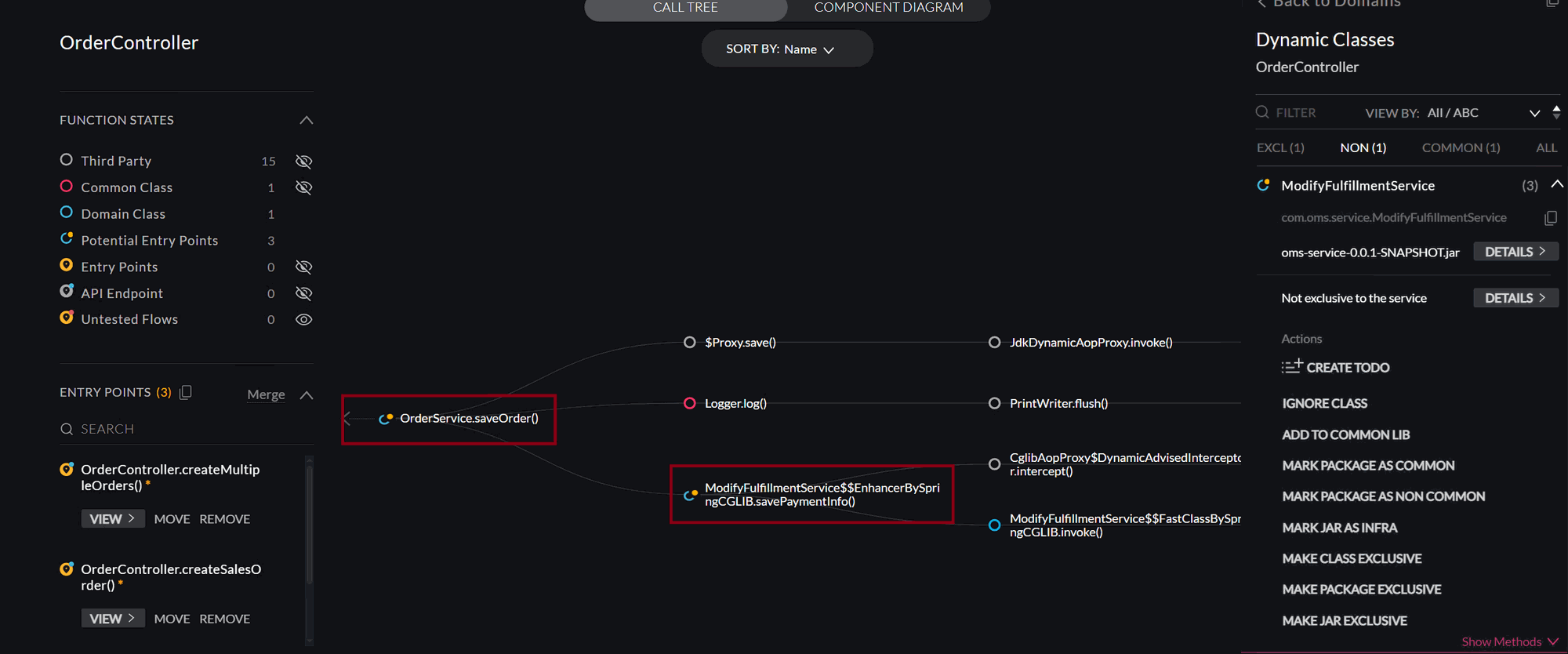

  3. Additionally, Navigate to the OrderController domain and view the non-exclusive dynamic classes. You should see the ModifyFulfillmentService class. Click its details to confirm that OrderService.saveOrder() calls ModifyFulfillmentService.savePaymentInfo()

    airefactor airefactor airefactor airefactor airefactor

Full Circle: This confirms the full loop: vFunction identified the issue → Kiro fixed the code with vFunction’s architectural context → vFunction verified the resolution.

Wrap Up

The refactored code has been built, deployed, and validated. The TODO is confirmed as resolved in both the vFunction UI and Kiro Chat. Let’s summarize what we accomplished.
